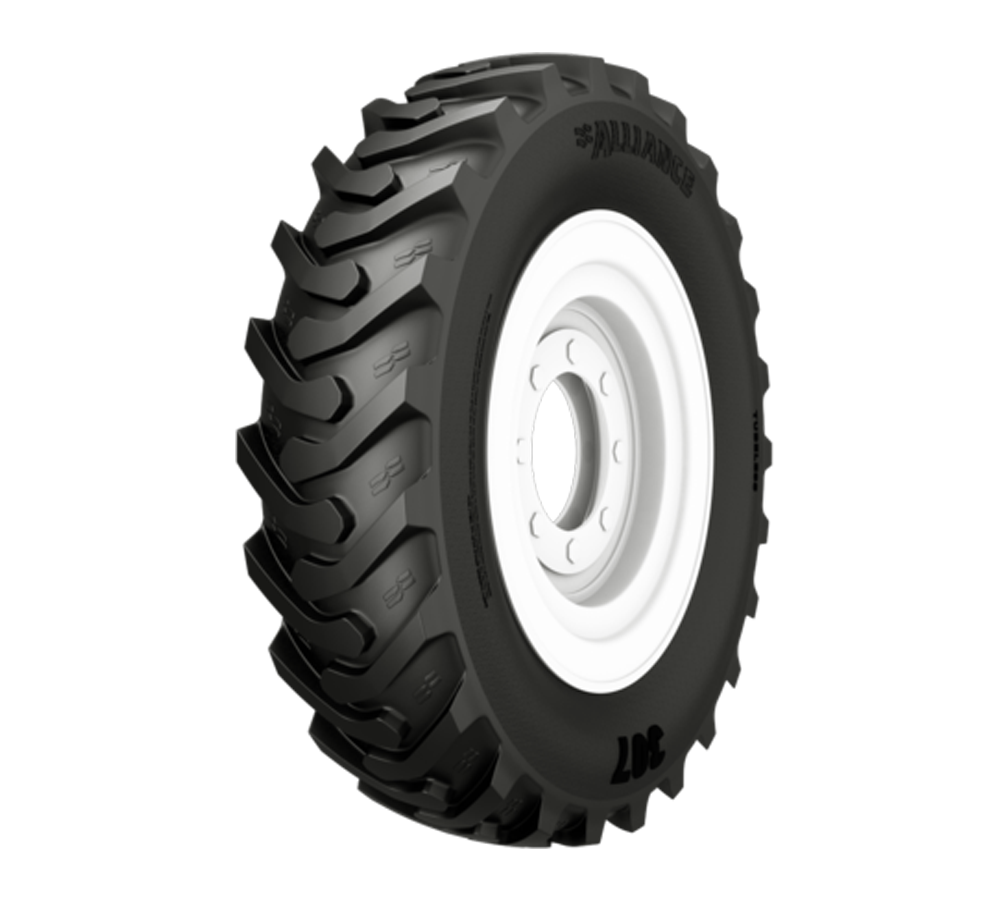

20.5-25 16 PR ALLIANCE 307 G-2/L-2 TL

Description

The Alliance 307 is an updated pattern that has been designed primarily for road grader and loader dozer application across a range of sizes. An extremely tough nylon casing enables the tyre to perform under the most severe conditions and demanding terrains. Good traction and self-cleaning properties are guaranteed and a cut-and-chip resistant compound use din the manufacturing process helps to increase the tyres durability and extend the tyre's life cycle.

Features

  • Updated pattern for use with road graders and other equipment.
  • Tough casing and good performance under severe conditions.
  • Overlapping lug design provides excellent traction, self-cleaning properties and stability.
  • Cut-and-chip resistant compound for increased durability.

Specification

Sector
INDUSTRIAL
Application
PLANT
Range
PLANT GRADER
Size
20.5-25
Brand
ALLIANCE
Pattern
307
Ply Rating
16
TT/TL
TL
Construction
BIAS
Nominal Section Width
20.5
Rim
25
TRA
G-2/L-2
Recommended Rim
17.00/2.5
Section Width
518 mm
Overall Diameter
1493 mm
Static Load Radius
674 mm
Rolling Circumference
4445 mm
Tread Depth
29.00 mm
Max Load (KG)/Speed (KM/H) 1
4000/40 WHEN 2.25 BAR (G-2)
Max Load (KG)/Speed (KM/H) 2
8250/10 WHEN 3.50 BAR (L-2)
Specification 1
CUT AND CHIP RESISTANT COMPOUND
Warranty
5 YEARS
